Aqua Quip Evo2 LED Light (Niche)

The Evo2 LED pool lighting system combines many unique features resulting in a spectacular, ultra-reliable lighting system that is user friendly and easy to install.

Evo2 LED lights are available in either fixed colour or multi-colour options. The fixed colours are white, blue or green – the multi-colour option features Aqua-Quip’s unique Colour Selection Palette which provides an almost limitless variety of colour possibilities and a vast array of pre-programmed scroll and flash modes.

The “flushest” pool light on the market!

The beauty of the Evo2 is that the lights sit flush with the pool wall making them totally unobtrusive. The lights are stylish and modern making them ideal for all types of pools, water features, spas, fountains, waterfalls, beach areas, ponds and catch tanks.

The elegance of the lighting system can be further enhanced with the addition of the optional stainless steel trim ring creating some spectacular visual effects. The Evo2 system incorporates the latest generation LED technology and thermal management system to ensure maximum light output and reliability. In addition, Evo2 lights are energy efficient and the entire system is extra-low-voltage ensuring safety at all times.

Features and Specifications

• Nominal Supply Voltage: 12V AC 50/60 Hz.
• Voltage Tolerance: +20%, -20%.
• Protection Rating: IPX8 (to 2.0m depth).
• Temperature Range: 0°C ~ +40°C water temperature.
• Power Consumption: White, blue and green = 8 VA.
• Power Consumption: Spectrum III Multi Colour = 16 VA maximum.
• Light Output (typical): White-550 lumens, blue-180 lumens, green-500 Lumens.
• Fault Protection: Power-cycle “run dry” thermal cut out. Voltage transient clamping.

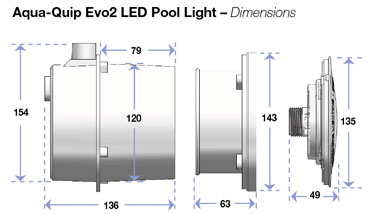

Dimensions

Downloads

Brochure Manual Installation & Spec
