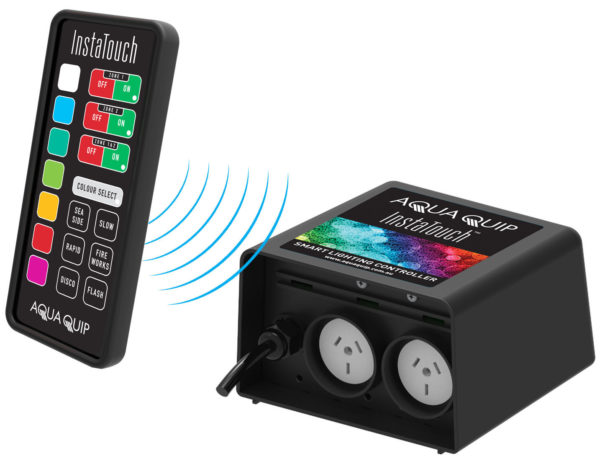

Aqua Quip Instatouch Smart Lighting Controller

InstaTouch is the new smart remote controller for your LED Pool Lights.

Welcome to the world of Instant colour, where Aqua-Quip’s spectacular underwater lighting effects are controlled at your fingertips.

Features

• Intuitive touch-screen wireless handset allows you to instantly select colours for your pool, spa or water feature.
• The wireless handset is robust and water-resistant – whilst retaining a slick and stylish appearance.
• Control two lighting zones independently, with a wireless handset that has extended range.
• Choose from 7 fixed colours and 6 colour shows, or choose and save your own fixed colour.
• No need to replace your existing cables and transformers.
• Enables lights to be dimmed.
• Simple to install, plug and play.
• Simple and easy to install.
• Adjustable brightness control.
• Power-saving technology.
• Up to 70m line-of-sight range.
• Instantaneous colour control.
• 7 fixed colours and 6 colour shows to choose from.

Specifications

Receiver/Base Station

INPUT POWER: 220Vac – 240Vac, 50Hz

OUTPUTS: Two x controlled mains outlet sockets.

MAX LOAD: 10 Amps (2400VA) total maximum).

POWER CONSUMPTION: <30VA (<3 watts).

USER CONTROLS: None required.

USER INDICATOR: Audible beeper.

IP RATING: IP33

MAINS SURGE PROTECTION: >10kA

Remote Handset

KEYPAD: 20 x touch-sensitive keys.

USER INDICATORS: 4 x LEDs.

BATTERIES: 2 x AAA alkaline cells (included).

STANDBY POWER DRAIN: Nil.

HANDSET ACTIVATION: Vibration (“shake to wake”).

BATTERY LIFE: >3 years (normal use).

IP RATING: IP56 (with cover fitted).

InstaTouch System

ZONES: Two independently-controlled zones.

COLOURS/SHOWS: Seven preset colours, six animated shows plus user Colour Selection.

REMOTE CONTROL PATH: 433.92MHz radio frequency.

REMOTE CONTROL RANGE : >70m (line of sight), >40m (typical urban).

Downloads

Brochure Installation & Owners Manual
