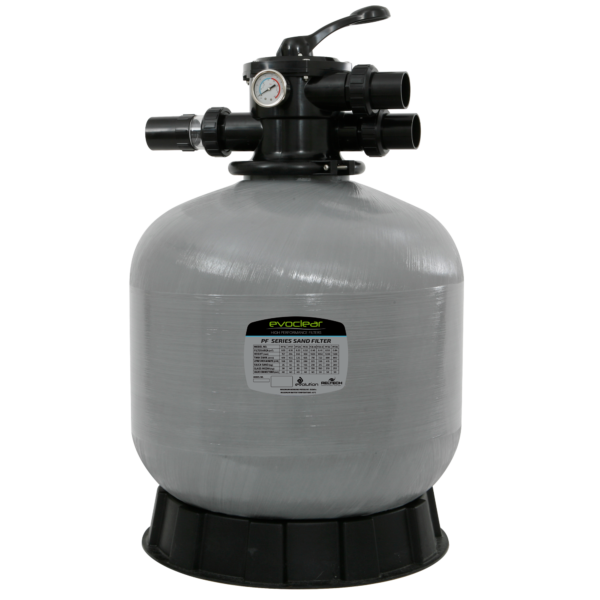

Evoclear PF Series Media Filter – Fibreglass Tank

The Evoclear PF Series Fibreglass Media Filter range features commercial quality construction with a dual-layer, UV resistant tank. The filters have been developed with efficient hydraulics, resulting in superior flow and quiet operation, and are suitable for sand and glass media.

Features

• Excellent flow rate
• Suitable for sand, glass and other media.
• Commercial performance
• Ultra-quiet operation
• Designed and built to commercial standards.
• Dual layer fibreglass and polymer tank with up to 250kPa working pressure.
• Tank constructed with strong corrosion and UV resistant materials for extreme durability.
• Premium 6 way multi-port valve for simple filter control and backwashing.
• Large “Palm-Action” handle for easy positioning of multi-port valve.
• Efficient hydraulic design allows for high flow rates and low noise operation.
• Extra-large laterals for optimum filtration.
• Stainless steel oil filled pressure gauge.
• Built in waste port sight glass for high visibility of backwash water.
• Automatic air bleed prevents the build-up of any air in the filter.
• Provided with robust ABS barrel unions for simple installation.

Specifications

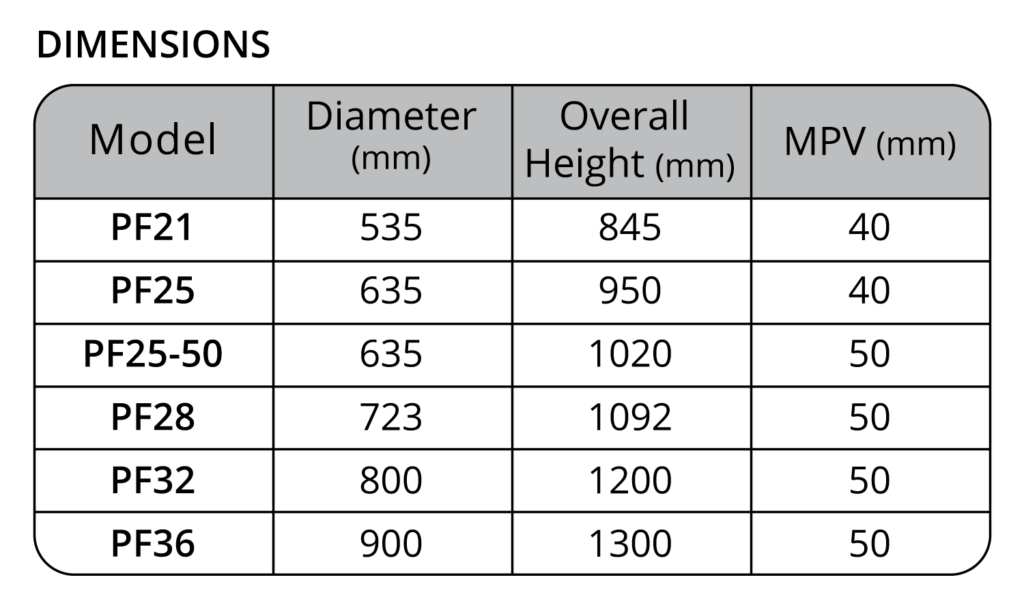

Dimensions

Diagram

Downloads

Brochure Manual
