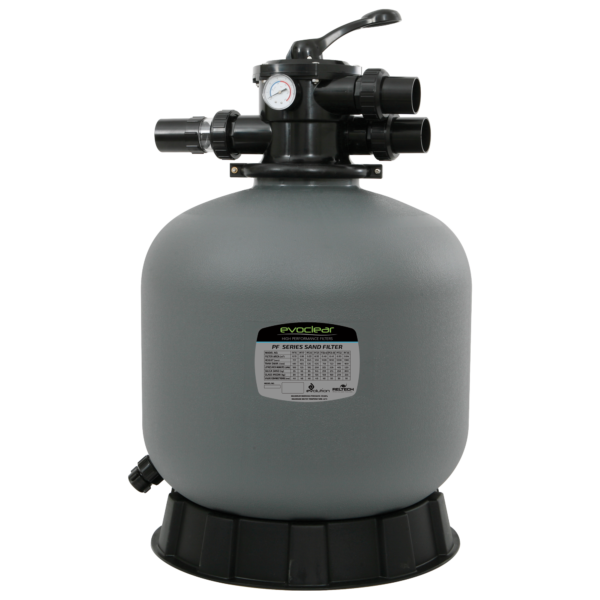

Evoclear PF Series Media Filter – Polymer Tank

The Evoclear PF Series Polymer Media Filter is a reliable and robust filter for all pool types. Constructed with an engineering grade polymer, the tank is UV resistant and backed by a 10 year warranty. With a six position multi-port valve, this dependable filter is a breeze to operate.

Features

• Engineering grade polymer tank with up to 200kPa working pressure.
• Constructed with corrosion and UV resistant materials for extreme durability.
• Premium 6 way multi-port valve for simple filter control and backwashing.
• Large “Palm-Action” handle for easy positioning of multi-port valve.
• Efficient hydraulic design allows for high flow rates and low noise operation.
• Extra-large laterals for optimum filtration.
• Stainless steel oil filled pressure gauge.
• Built in waste port sight glass for high visibility of backwash water.
• Automatic air bleed prevents the build-up of any air in the filter.
• Provided with robust ABS barrel unions for simple installation.
• Multi-port valve clamp allows for 360° orientation of valve for simple installation and service.
• Suitable for sand, glass and other media.

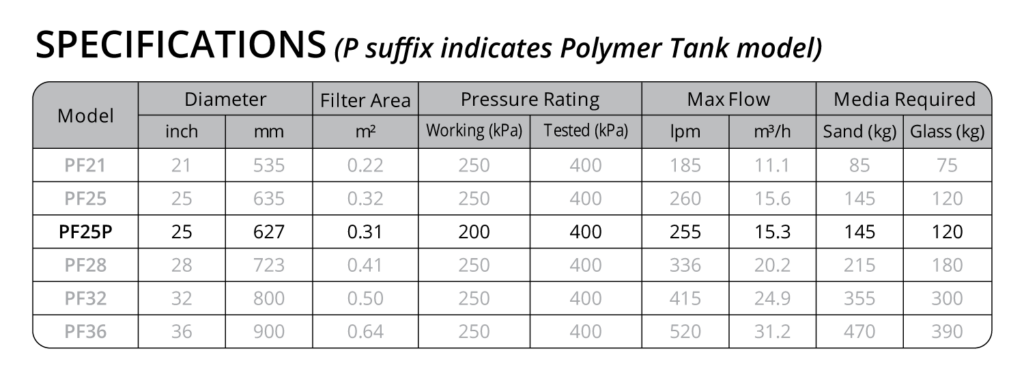

Specifications

Dimensions

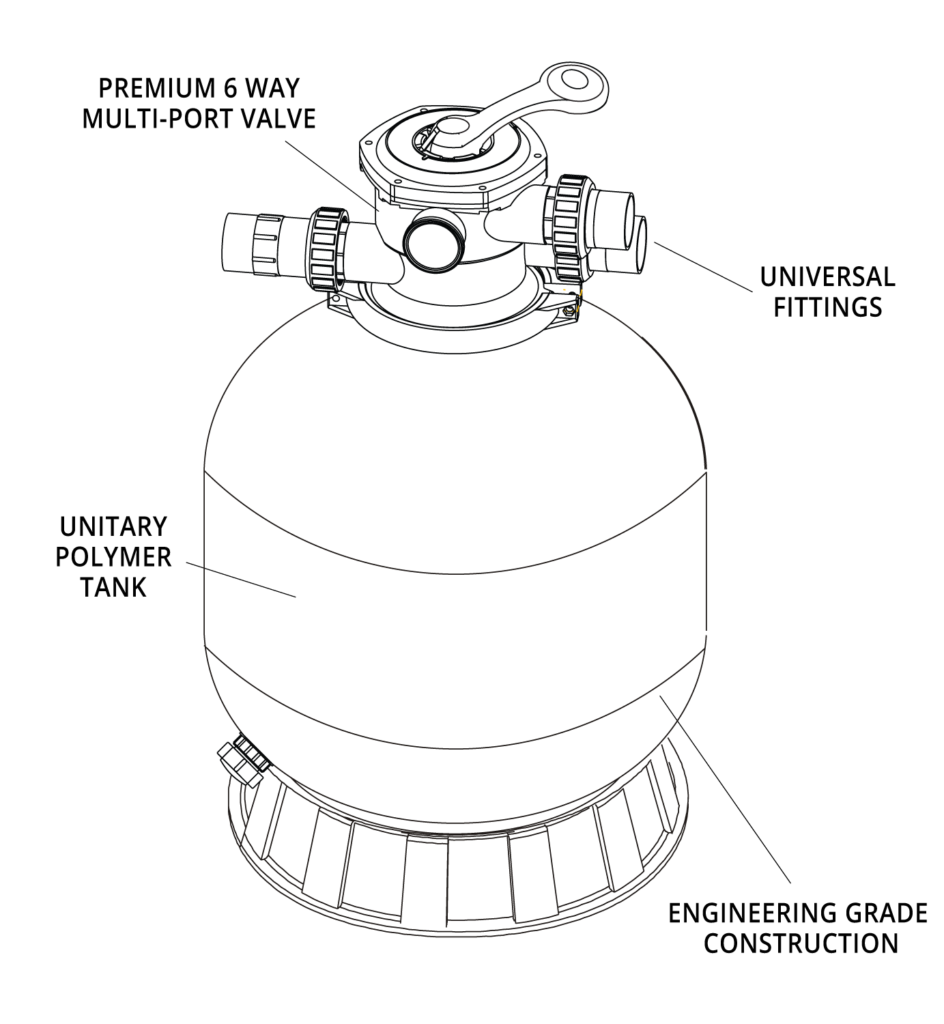

Diagram

Downloads

Brochure Manual
