Evoclear Opal (OP) Series Cartridge Filter


The Evoclear Opal Series Cartridge Filter range provides sparkling clear water and requires minimal maintenance. Opal Series Filters are suitable for all pool types, are chemical and corrosion resistant, and are ideal for tight spaces with the unique low profile design.

  • Super fine filtration for sparkling clear water.
  • Tough heavy duty polyester filter fabric with wide and deep pleats for better efficiency, easy cleaning and longer cartridge life.
  • Solid one piece filter tank, constructed from high impact polypropylene and rated to a working pressure of 250kPa.
  • No backwashing required, therefore no salt and pool chemicals released into waterways.
  • Filter cartridge is easily cleaned by hosing the pleats with a standard garden hose.
  • Low profile compact design for easy cartridge removal and inconspicuous enclosure.
  • Suitable for all types of pools and spas, fresh water and salt water.
  • Resistant to chemicals and corrosion.
  • UV resistant housing and components.
  • 50mm barrel unions for easy installation and quick disconnection.
  • Supplied with a quality oil filled pressure gauge with an easy to read dial.

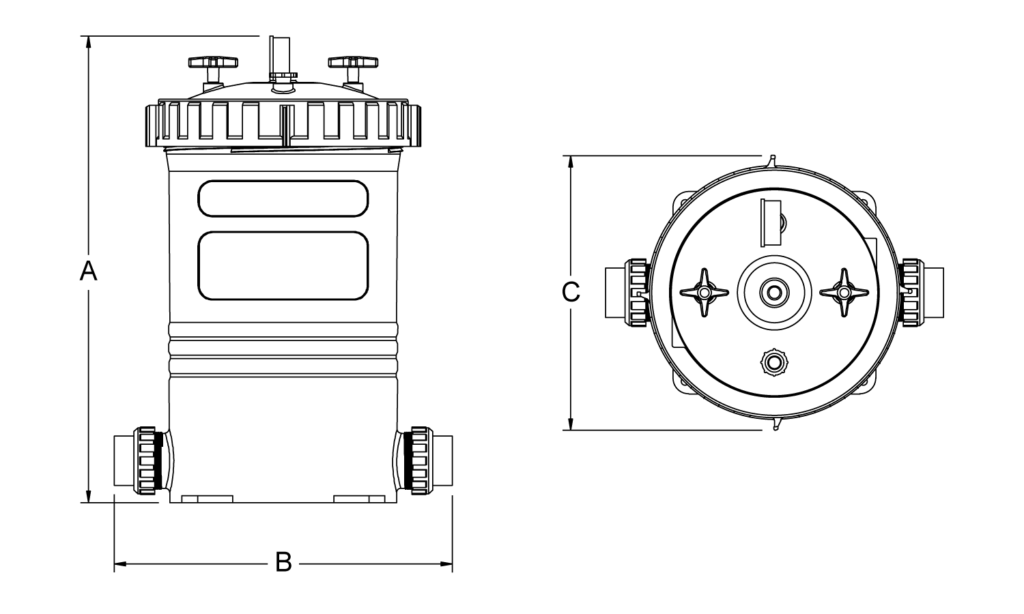

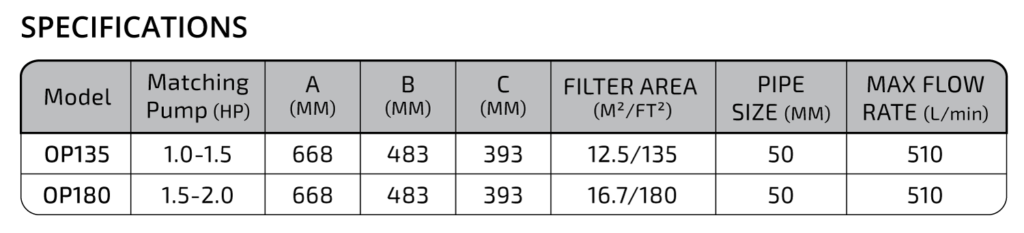

Dimensions and Specifications


Brochure Manual
