Pentair Southern Cross ISO Starline Commercial

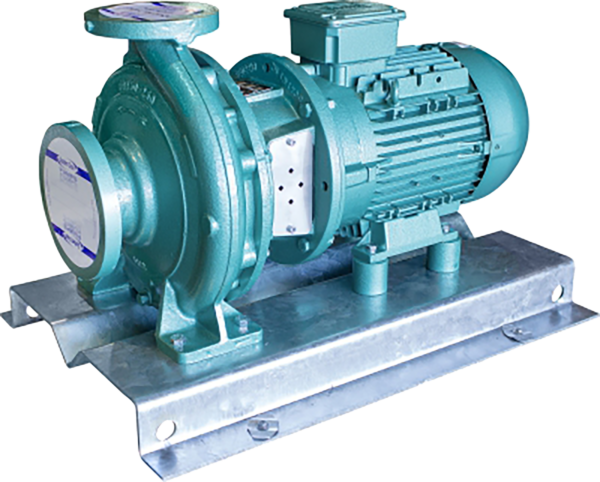

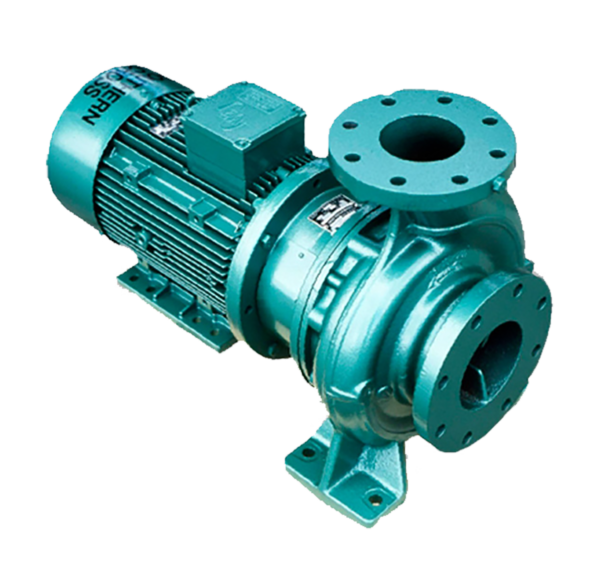

Pentair Southern Cross Starline Commercial Pump – CLOSE COUPLED, ISO 2858

Designed for efficient and reliable general-purpose water transfer.

Applications include: General-purpose water transfer in industry, building services and irrigation.

Features

Overview:

• Space saving design.
• Superior hydraulic design and manufacturing methods produce significantly higher efficiencies for lower running costs and reduced maintenance.
• Australian designed and manufactured.
• Up to 250 litres per second discharge.
• Australian wide service and backup.
• ISO 9001 quality assured.
• 32 to 200mm discharge.
• Wide range of options.
• Heads to 160 metres.

Standard Features:

• Type 316 stainless steel shaft extension.
• G. cast iron motor shaft clamp.
• TEFC IP55 motor; rugged cast iron volute with integral suction and discharge flanges and mounting feet.
• Pressure rated to 1600kPa (160 metre head).
• Cast iron impeller and backplate; stainless steel impeller nut.
• Rigid cast iron bell housing connects motor and pump housing.
• Single mechanical seal.

Special Design Features:

• Use of standard off-the-shelf foot and flanged electric motors with highly accurate clamp on shaft extensions;
• Taper mounted and keyed impeller for easy removal from shaft during servicing and positive locking during operation.
• Heavy duty stainless steel shaft extensions for safe operation at high speed;
• AS1830/T260 cast iron volute for added safety; reusable “O” ring body seal.
• Hydraulically and dynamically balanced impellers.
• Highly efficient suction performance from double curvature impeller vanes.

Optional Materials:

• Stainless Steel AS2074 / H6B

Optional Extras:

• Zinc-free bronze wear rings for impeller, volute and backplate.
• Optional single mechanical seals.
• Optional motor specifications and classes works certified and witnessed tests for guaranteed performance.
• Impeller turn-downs.
• Pressed or welded steel baseplates.

Maximum Operating Temperature:

Maximum pumped liquid temperature for Southern Cross Starline pumps is 100°C using standard seals.  Liquids up to 140°C can be handled using special seals. Consult Southern Cross Customer Service Unit for further information.
