Evoclear Trim (TM) Series Cartridge Filter


Evoclear Trim Series Cartridge Filters are compact, economical filters designed to effectively filter out any suspended solids from the pool. Trim Series filters utilise a specially formulated synthetic filter fabric and are ideal for applications where backwashing may not be practical.

  • High impact polymer tank
  • Chemical and corrosion resistant
  • Provides economical filtration
  • Slim and compact design
  • Super fine filtration for crystal clear water.
  • Filter cartridge produced with commercial quality polyester pleated fabric.
  • Filter tank constructed from high impact polypropylene and rated to a working pressure of 350kPa.
  • No backwashing required, therefore no salt and pool chemicals released into waterways.
  • Filter cartridge is easily cleaned by hosing the pleats with a standard garden hose.
  • Slim and light weight, ideal for installation in tight spaces.
  • Suitable for all types of pools and spas, fresh water and salt water.
  • Resistant to chemicals and corrosion.
  • UV resistant housing and components.
  • Inbuilt air bleed eliminates any air build up in the filter tank.
  • 40mm barrel unions for easy installation and quick disconnection.
  • Easy to read pressure gauge.

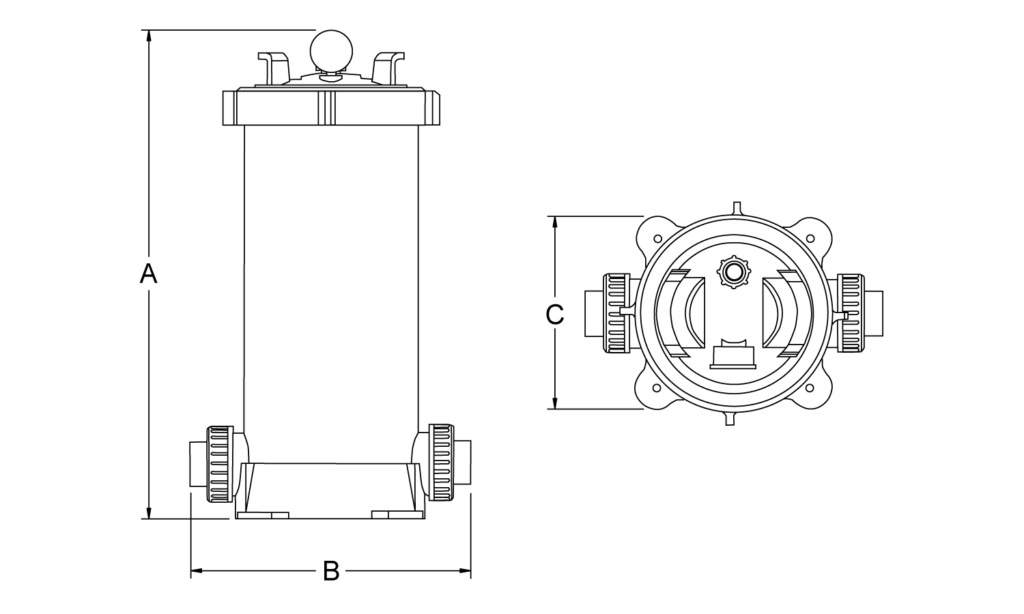

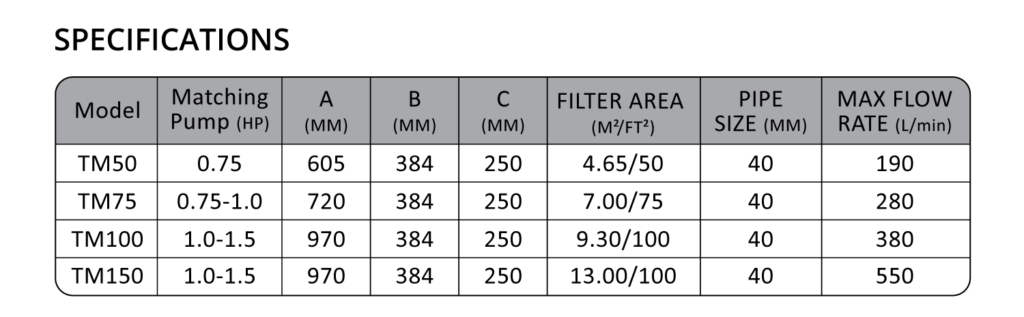

Dimensions and Specifications
