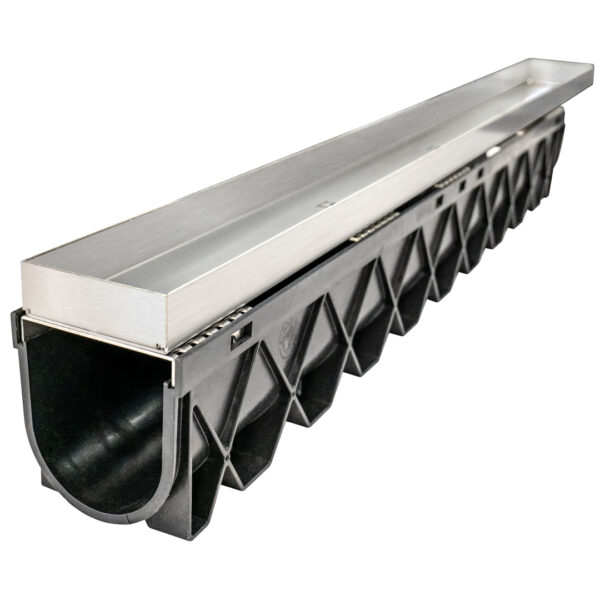

HIDE Linear Drain Cover Kit


HIDE Linear Drain Covers are designed for sophisticated drainage solutions that blend seamlessly with your pool aesthetic. Fully compliant poolware that is built for quality and purpose – transforming those traditional eyesore spots into hidden no-shows. The HIDE Linear Drain Cover is for linear drainage applications.

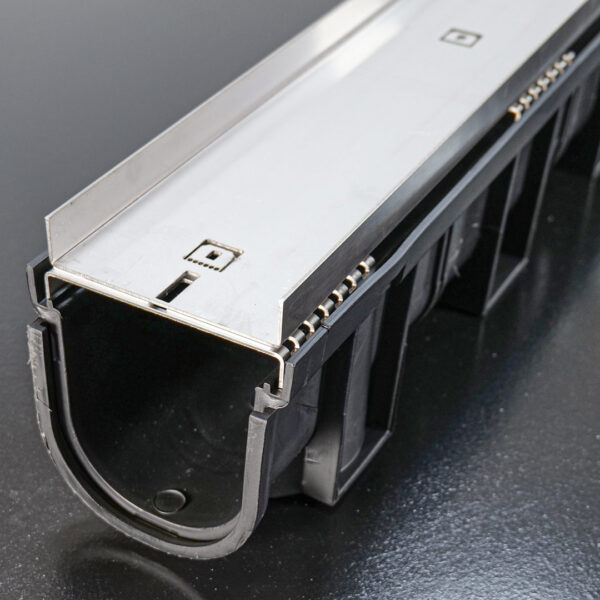

The HIDE Linear Drain Cover has specially designed seating structure for tile or prefab inlay. This allows for a seamless finish across any range of surface.

  • Suitable for Tile or prefabricated inlay with your selected surface finish.
  • Covers a 20mm deep recess with a width of 125mm or 112mm.
  • Compatible with Everhard (ED) or Reln (SM) channel systems (not included).
  • Easily Removed Modular lengths.
  • Cover Depths to suit 10, 20 & 30mm tile or stone.
  • Adjustable height & clearances.
  • Centralising Tabs; A world first in design.
  • 90º Mitred corner kit option.
  • 10 year warranty.
  • Flexible installation features.
  • No equipotential bonding required.



Brochure Specifications Installation
